> Applied to fabricate PE PP PVDF elbow, tee, cross and Y shape (45° and 60 °) fittings in workshop. Also used to lengthen the injection moulded fitting and make an integrated fitting. > Integrated structure. Nothing remains but to choose the different special clamps while fabricating different fittings > Removable PTFE coated heating plate with separate temperature controlling system > Electric planing tool with safety limit switch enable to start it only when it is locked in the operation position > Low starting pressure and high reliable seal structure > CNC control with data logger and printer.
The main parameters:
Pipe sizes (mm)
Working ranges Elbow
0~90° Elbow.tee,cross,45°,60°Wyes(optional parts should be used)
Heating Plate Max. Temp.
Temp. deviation in surface (170~250°C)
Pressure adjustable ranges
Heating plate power
Planing tool power
Hydraulic unit power
18000KG(Exclude optional parts )
11 Plywood Cases

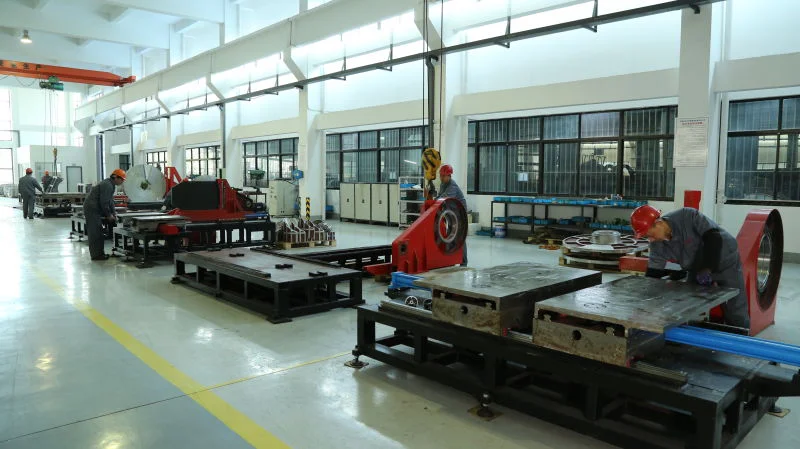

Our company WUXI SHENGDA PLASTIC PIPES WELDING MACHINE CO., LTD is the leader manufacturer of butt fusion equipment in China. We occupy the 70% domestic market and export to more than 45 countries. We specialize in producing a complete range of international standard butt fusion equipment includingfield welding machine, workshop fitting machine, pipe saw, all the optional parts and tools required under the ISO9001 system and approved to CE standards by SGS.
